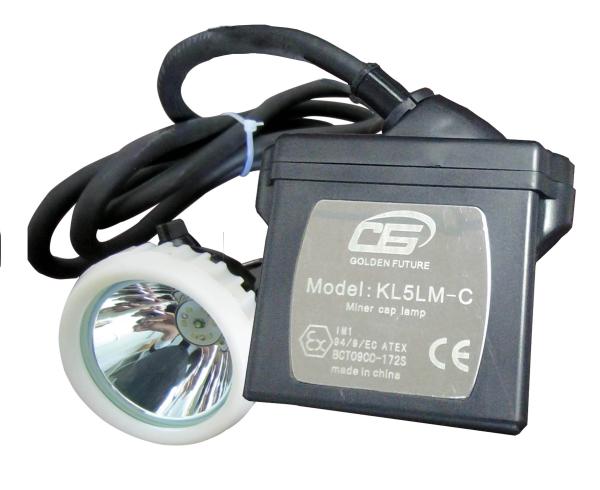

Output 15000 lux,same function,better quality than New Wisdom KL5M
miner cap lamp,ATEX
Lighting degree for main light is 10000-15000 lux in full lighting
time, continuous lighting time is more than 15 hours, .
with flash signal for low power indication for last one hour.6.5Ah
li-ion battery, with short circuit protection,
charger included, charger output voltage: DC4.2V/1.5A, white box
packing, unit weight: 1000g,
Packing: 20sets/carton, GW: 20KG,
Free maintenance, long lifetime, intrinsically safety, waterproof
Applications:
It is suitable for mineral industry, tunnel projects, construction
and maintenance for power,
communication, highway, railway at night, night lamp for cutting
off rubber plant and absorbing
mucus and for lighting a flood, rescuing and marine use
Specifications:
NO. | item | parameter | unit | remark |
1 | Rating voltage | 3.7 | V | |
2 | Rating capability | 6.5 | Ah | |
3 | Lighting duration(main lamp-house) | ≥15 | H | The real duration is more |
4 | intensity of illumination(main lamp-house) | beginning | ≥10000 | Lux | 1 meter from the lamp |
After 11 hours | ≥10000 |
5 | LED average current | main lamp-house | 400 | MA | |
secondary lamp-house | 110 | |
6 | Charge protective voltage | 4.2 | V | |
7 | Discharge protective voltage | 3.0 | V | |
8 | Battery circular life | >1000 | CIRCLE | Circular times |
9 | Weight | 1000 | g | |
Competitive Advantage:
1. high lighting degree : main light is more than 12000 lux in full
lighting time
2. with flash signal for low power indication for last one hour
3. long working time : continuous lighting time is more than 15
hours. With 6.5Ah Li-ion battery
4. safety precautions : with short-circuit protection, include
single charger, charging rated voltage DC4.2V
5. certificate :CE & ATEX
