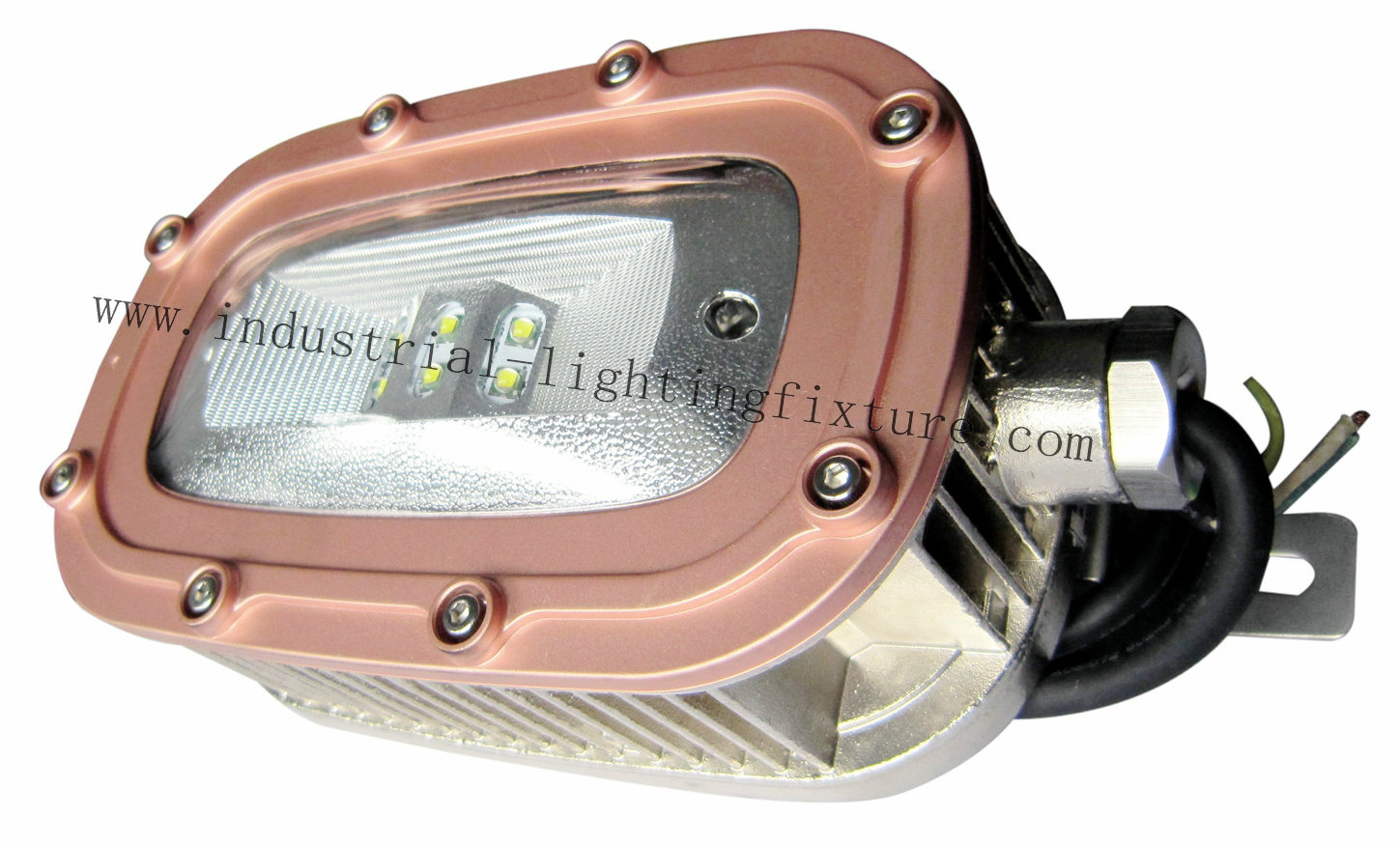

30 watt Explosion-Proof Led Tunnel Light/Flood Light/Area Light for Underground Passage,CSA ,ATEX

The DMT-30 LED mining safety tunnel light is specially designed for tunnel illumination of underground mines, industry plant and offshore oil plant, which has potential explosive atmospheres or combustible dust, sulfide or salt in the air.

Advantages:

Absolutely corrosion proof, explosion proof, it is a very good item for coal mine, metal mine and offshore oil plant;
Reducing energy by 7 times, the energy you saved for one year using is enough to buy the lamp.
Very long lifetime, and no maintenance cost.

Housing material:

stainless steel with nickel plated, absolutely corrosion proof
bulletproof PC lens with antistatic oil painted, which can support more than 20J impact, no need metal mesh as normal light

Light source:

6pcs American CREE XM LED, total power 30 watt,
initial output lumens is 3000 lumens.
Life time: more than 50,000 hours
CRI: 78, color temperature: 6500K

Patented reflectors enable the lamp to illuminate the underground passage uniformly, 160 degree beam angle in longituginal plane, and 120 degree in transverse plane

Electrical:

Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage drops.
Total power consumption is only 33watt, .reducing energy consumption by 7 times.

Long life span, and no maintenance cost, absolutely corrosion proof, explosion proof, dust proof and water proof.

Rated:

water proof: IP67
Corrosion proof: WF2
EXD 1 for MI,
EXD IIB T5 for MII, Zone 1 and 2, Zone 21 and 22

Approval:

ATEX (In process)
CSA (in process)
FM (in process)

Specifications:

SHENZHEN GF TECHNOLOGY DEVELOPMENT LTD.(GOLDEN FUTURE ENTERPRISE HK LTD.) is a specialist on the design and selling of LED industry lighting for more than 10 years, especially for miner lamp, explosion proof lighting fixture, LED street light and other LED commercial lightings, and etc.
We have more than 10 advanced engineers with many years design experience for the electronic design, structure design and optics design.


With many years selling, We have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.

Our product line covers:

1.  mining safety cap lamps, or miner lamp; explosion proof lighting fixture for mining or petro-plant.

2.  LED street light, LED high bay light, flood light or area light.

3.  LED commercial lightings and bulbs.

4.  LED flashlights and headlamps.

5.  LED keychains and other gift products.

Besides the LED application products, our factory also can do some OEM products, such as making moulds, plastic injection, CNC machined aluminum parts or copper parts, and etc. Please do not hesitate to contact us if you need LED application
products or need to develop new products.
You are warmly welcomed all the time.
