6000 Lumens stainless steel LED Explosion Proof Light , 60W safety
tunnel lighting
Advantage of led safety tunnel lights:
1. Absolutely corrosion proof, explosion proof and waterproof, it is a
very good item for coal mine, metal mine and offshore oil plant;
2. As higher final output efficiency, it can replace the 200 watt
halogen lamp, and reducing energy by 7 times. ( the energy you
saved for one year using is enough to buy the lamp)
3. Very long lifetime, and no maintenance cost.
Specification :
| Items | Unit |
| Total power consumption | 60 watt |
| Output lumens | 6000 lumens |
| Rated Voltage | AC 85~265V |
| DC 24/36V |
| High power LED brand | CREE |
| weight | 6.5 kg |
| Power factor (λ) | >0.9 |
| CRI | 78 |
| CCT | 6500K |
| Corrosion proof grade | WF2 |
| IP Classification | IP67 |
Explosion protection classification | EXD I, EXD IIB T5 |
Area classifications(gases) | Zone 1 and 2 |
| Gas Group | IIA, IIB |
| Temperature classification | T5 |
Housing material:
1. stainless steel with nickel plated, absolutely corrosion proof
2. bulletproof PC lens with antistatic oil painted, which can bear
more than 20J impact, no need metal mesh as normal light
Electrical:
Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage
drops. Total power consumption is only 60watt, .reducing energy
consumption by 7 times.
Rated:
water proof: IP67
Corrosion proof: WF2
EXD I,
EXD IIB T5 (for Zone 1 and 2, Zone 21 and 22 )
Approval:
ATEX (In process)
CSA
FM (in process)

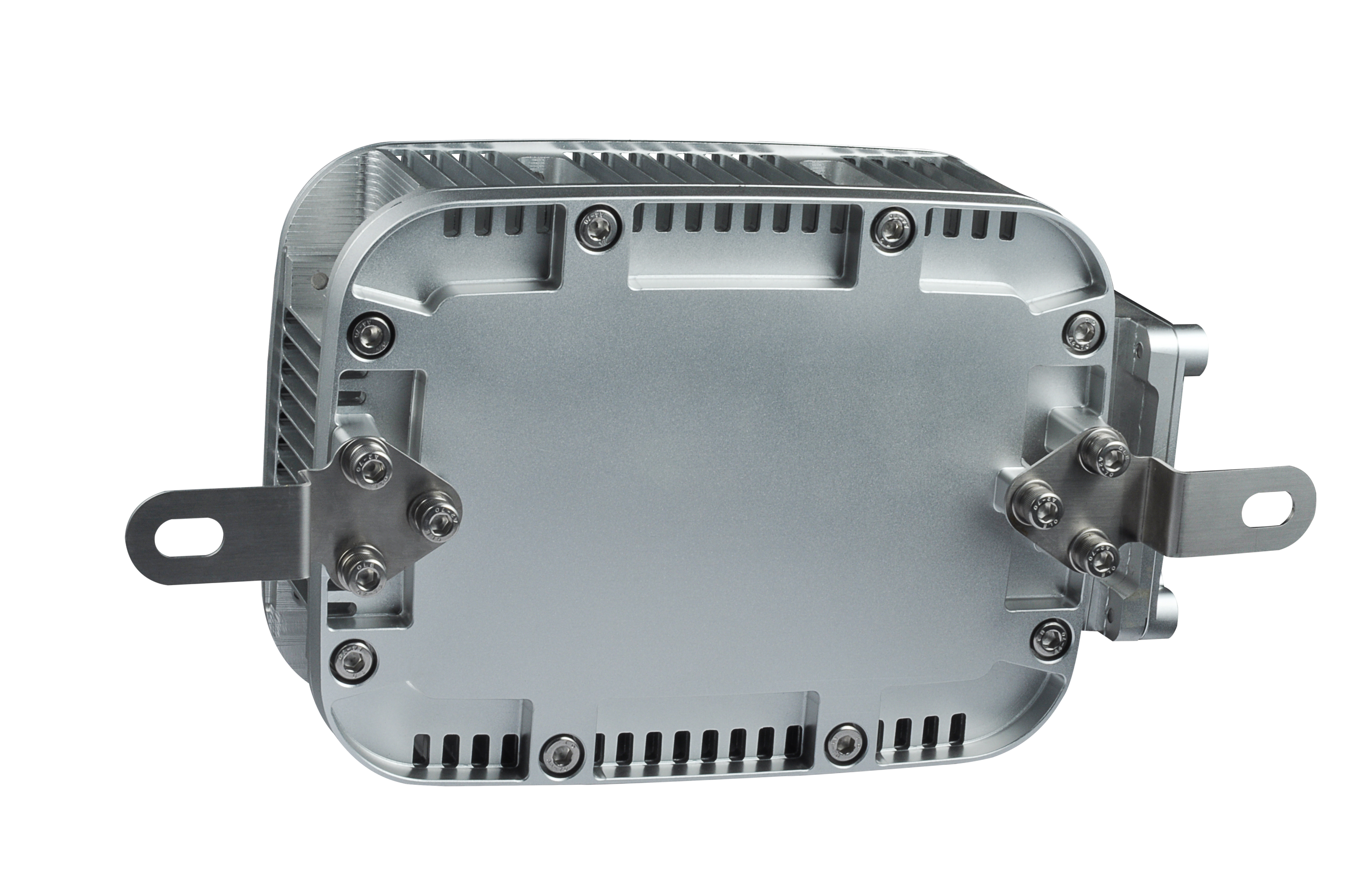

Product show of led explosion proof tunnel lights:
Application of stainless steel tunnel lights:
The DMT-60 is suitable for underground mines, underground tunnel
etc.
