6.6Ah high lumens Industrial Lighting Fixture , rechargeable mining led lights explosion proof

1 Product Details

Safety: All-in-one case with PC material make very good fixture of explosion-proof, short-circuit proof, automatic power off , 100,000 hours LED's life time
Reliability: The high strength case, bulletproof glass lens, optimized structure design and MCU control
make the product more reliable.
Portable: Just a head lamp, small in size, light in weight, simple charging, easy usage.
Efficiency: more than 15 hours working time, max 20000 lux degree high light, battery usage lifetime
1000 cycles.
Environmental: Li-ion battery is free of maintenance, and the material of li-ion is environmental, use 1
watt high power LED as main light, and 6 pieces 5mm backup LED to save power.

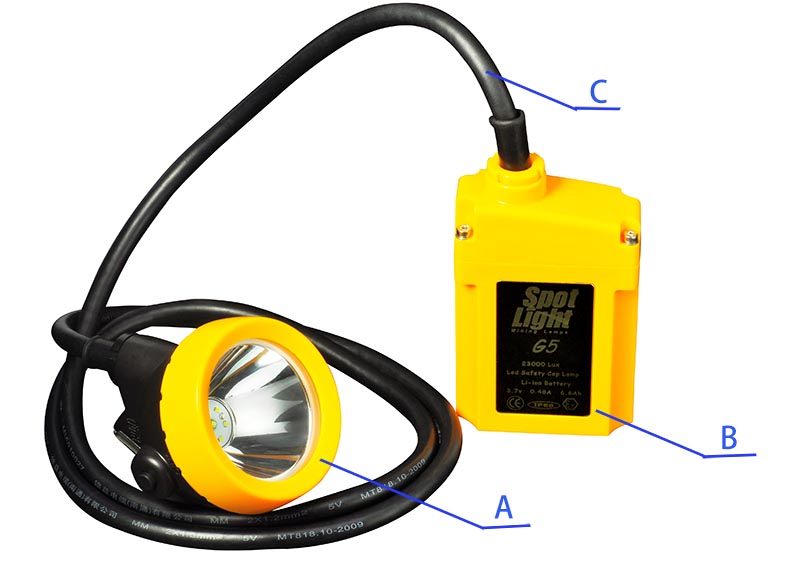

A Head lamp B battery case C Flexible cable

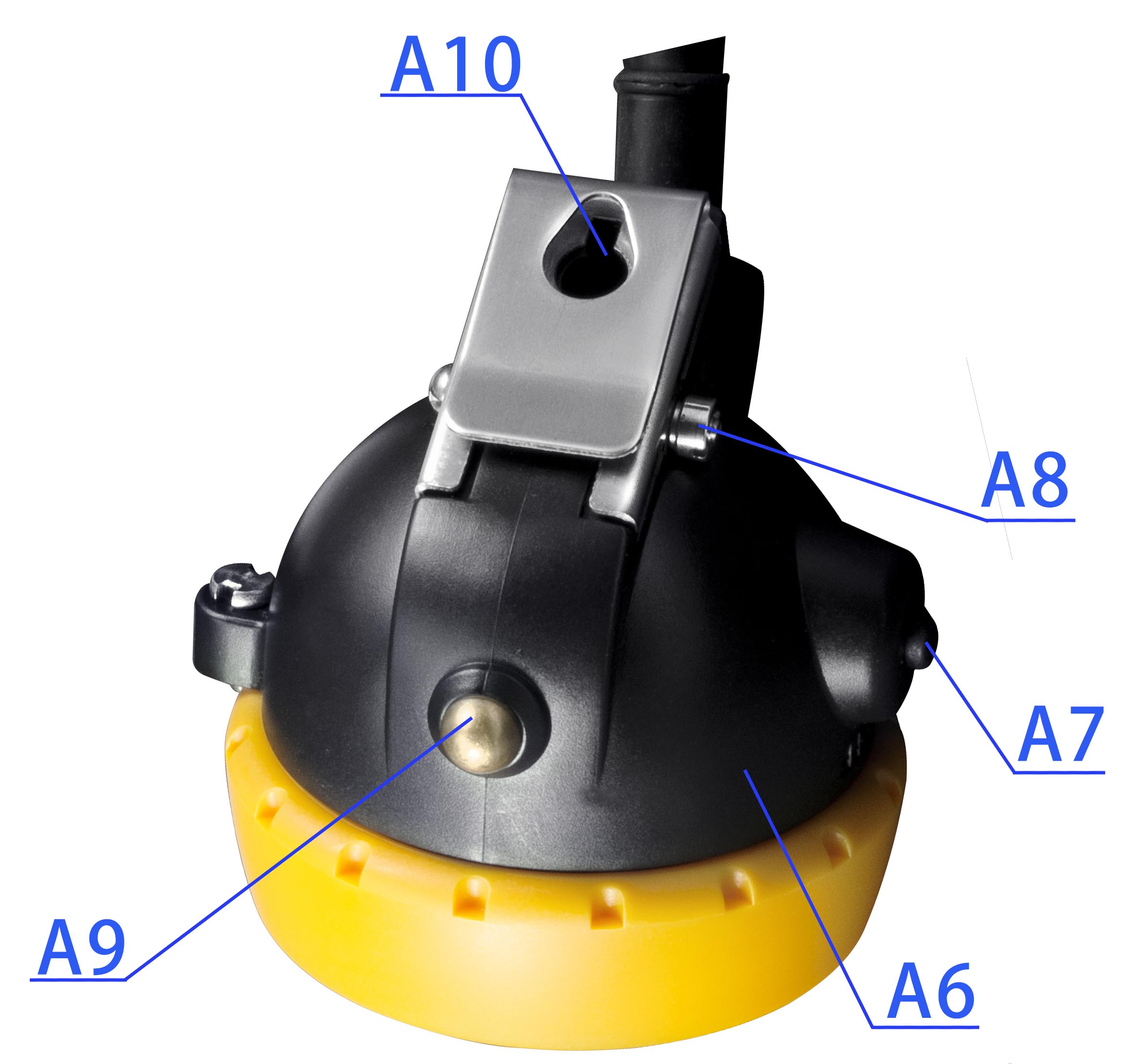

A1 Headlamp cover A2 Stalinite lens A3 Reflector A4 Mian LED light

A5 Auxiliary light


A6 Head light shell A7 Button switch A8 Stainless steel clip
A9 Contact of anode A10 Cathode touch


B1 Battery Box B2 Belt buckle B3 Locking Nut




2 Testing Process





1 Integrating sphere: Used for testing iluminance flux, lighting degree, CRI
2 Battery test machine: Used for battery capacity and inner resistance testing.
3 Plug test machine: To test the life span of plug by drug it repeatedly
4 Button switch test machine: To test the life span of button switch by pushing it repeatedly
5 High temp test machine: To test the highest using temperature of lights by put it in setted temperature.
6 Low temp test machine: To test the lowest using temperature of light
7 Spray test machine: To Test the IP grade by controlling the angle and amount of water sprayed.
8 Impact resistance testing:Iron hammer dropping from 2m high, to test the firmness of housing
9 Outer package shaking resistance testing: To test the fimness of outer package by imitating the transportation environment.

SHENZHEN GF TECHNOLOGY DEVELOPMENT LTD.(GOLDEN FUTURE ENTERPRISE HK LTD.) is a specialist on the design and selling of LED industry lighting for more than 10 years, especially for miner lamp, explosion proof lighting fixture, LED street light and other LED commercial lightings, and etc.
We have more than 10 advanced engineers with many years design experience for the electronic design, structure design and optics design.


With many years selling, We have good reputation for high quality, good service and punctual delivery time from all our customers all over the world.

Our product line covers:

1.  mining safety cap lamps, or miner lamp; explosion proof lighting fixture for mining or petro-plant.

2.  LED street light, LED high bay light, flood light or area light.

3.  LED commercial lightings and bulbs.

4.  LED flashlights and headlamps.

5.  LED keychains and other gift products.

Besides the LED application products, our factory also can do some OEM products, such as making moulds, plastic injection, CNC machined aluminum parts or copper parts, and etc. Please do not hesitate to contact us if you need LED application
products or need to develop new products.
You are warmly welcomed all the time.
