3000 lumen LED explosion proof light Stainlesss steel housing CSA /
FCC
CSA ATEX coal mine waterproof explosion proof light
1. Cree LED light source
2. 30W 3. 3000Lumen
4. Stainlesss steel housing

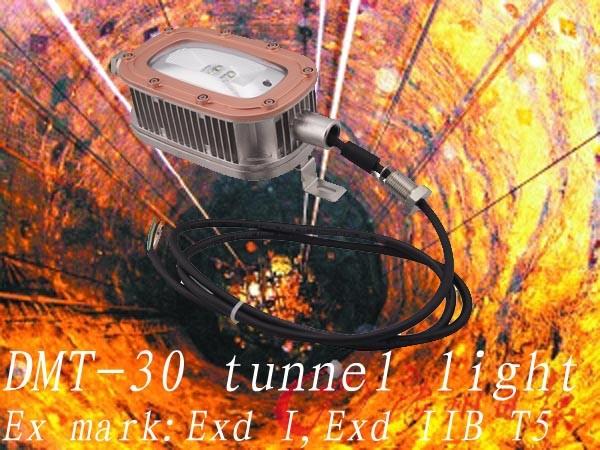

The DMT-30 LED tunnel light is specially designed for tunnel
illumination of underground mines, industry plant and offshore oil
plant, which has potential explosive atmospheres or combustible
dust, sulfide or salt in the air.
Product details :
1. 6pcs 5 watt Cree high power LED to get more than 3000 lumens
output, which is specially designed for tunnel
illumination of underground mines, industry plant and offshore oil
plant.
2. Stainless steel housing and bulletproof PC lens, which make the
IP67 stainless waterproof led light absolutely corrosion proof and
unbreakable.
3. Long life span, and no maintenance cost, absolutely explosion
proof, dust proof and water proof.
4.Total power consumption of the mining safety LED tunnel light is
only 33watt, .reducing energy consumption by 7 times.
the energy you saved for one year using is enough to buy the lamp.
5.CSA & ATEX Approved.
Specifications:
ITEM | UNIT |
Total power consumption: | 30 watt |
Output lumens: | 3000 lumens |
Rated Voltage | AC 85~265V DC24-36V
|
Power factor (λ): | >0.9 |
High power LED brand: | CREE |
CRI: | 78 |
CCT: | 6500K |
Corrosion proof grade: | WF2 |
IP Classification: | IP67 |
Explosion protection classification: | EXD I, EXD IIB T5 |
Equipment category: | Group I, Group II |
Area classifications (gases): | Zone 1 and 2 |
Gas Group: | IIA, IIB, |
Area classification (dusts): | Zone 21 and 22 |
Temperature classification: | T4 |
Dimension: | 27.5 * 12 * 12 cm |
weight: | 5KG |
Housing material:
stainless steel with nickel plated, absolutely corrosion proof
bulletproof PC lens with antistatic oil painted, which can support
more than 20J impact, no need metal mesh as normal light
Light source:
6pcs American CREE XM LED, total power 30 watt,
initial output lumens is 3000 lumens.
Life time: more than 50,000 hours
CRI: 78, color temperature: 6500K
Patented reflectors enable the lamp to illuminate the underground
passage uniformly, 150 degree beam angle in longituginal plane, and
120 degree in transverse plane
Electrical:
Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage
drops.
Total power consumption is only 33watt, .reducing energy
consumption by 7 times.
Long life span, and no maintenance cost, absolutely corrosion
proof, explosion proof, dust proof and water proof.
Rated:
water proof: IP67
Corrosion proof: WF2
EXD 1, EXD IIB T4(for Zone 1 and 2, Zone 21 and 22 )

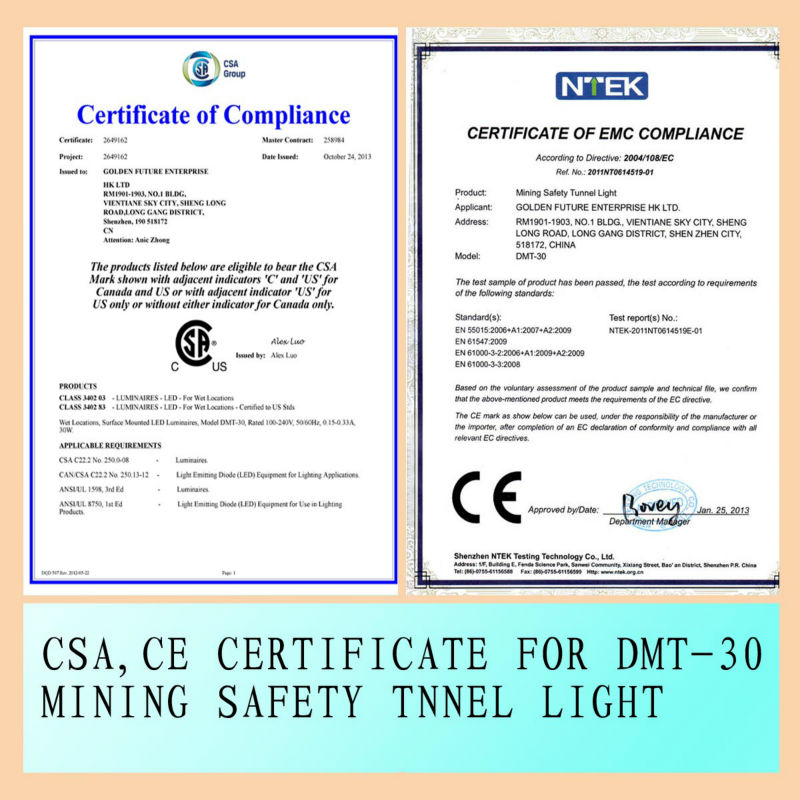

CERTIFICATION:
TEST EQUPMENT:
WORK SHOP
CERTIFICATE AWARDED BY GOVERNMENT:
