explosion proof stainless steel led coal safety mine tunnel light
1. 6pcs 5 watt Cree high power LED to get more than 3000 lumens
output, which is specially designed for
tunnel illumination of underground mines, industry plant and offshore oil
plant.
2. Stainless steel housing and bulletproof PC lens, which make led
lighabsolutely corrosion proof and unbreakable.
3. Long life span, and no maintenance cost, absolutely explosion
proof, dust proof and water proof.
4.Total power consumption is only 33watt, .reducing energy
consumption by 7 times.
the energy you saved for one year using is enough to buy the lamp.
5.CSA & ATEX Approved.
6. Super bright: 3000 Lu output
7. CSA approved
Light source:
6pcs American CREE XM LED, total power 30 watt,
initial output lumens is 3000 lumens.
Life time: more than 50,000 hours
CRI: 78, color temperature: 6500K
Patented reflectors enable the lamp to illuminate the underground
passage uniformly, 160 degree beam angle in longituginal plane, and
120 degree in transverse plane
Electrical:
Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage
drops.
Total power consumption is only 33watt, .reducing energy
consumption by 7 times.
Long life span, and no maintenance cost, absolutely corrosion
proof, explosion proof, dust proof and water proof.
Specification of explosion proof stainless steel led coal safety mine tunnel light :
Items | Unit |
Total power consumption: | 30 watt |
Output lumens: | 3000 lumens |
Rated Voltage | AC 85~265V |
DC 36 |
DC 24 |
Dimension: | 24 * 12 * 8.9 cm |
weight: | 5 kg |
Power factor (λ): | >0.9 |
High power LED brand: | CREE |
CRI: | 78 |
CCT: | 6500K |
Corrosion proof grade: | WF2 |
IP Classification: | IP67 |
Explosion protection classification: | EXD I, EXD IIB T5 |
Equipment category: | MI, MII |
Area classifications (gases): | Zone 1 and 2 |
Gas Group: | IIA, IIB, |
Area classification (dusts): | Zone 21 and 22 |
Temperature classification: | T5 |

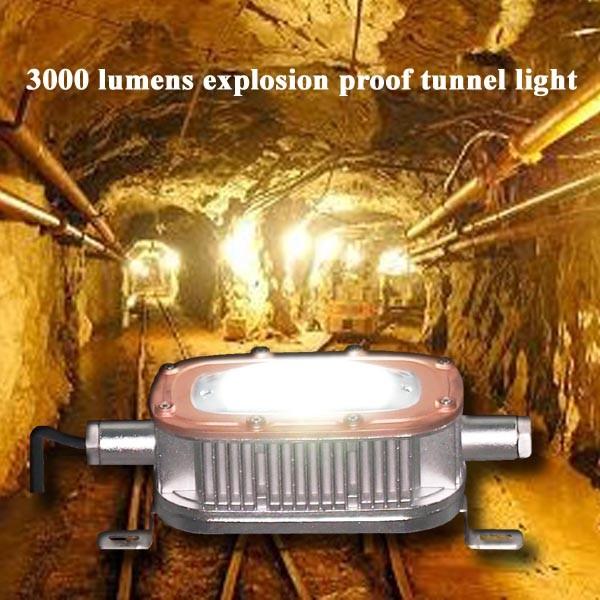

Product photos show of explosion proof stainless steel led coal
safety mine tunnel light:
