ATEX DL618 40W led linear Oil platform lighting - Replacement of
traditional explosion proof light
40w explosion proof lamp is special designed to replace traditional
fluorescent tube
DL618 LED Explosion Proof lamp is applicable for zone I and zone II
, or gas area, restricted area or heavy industrial processing
equipment area, drilling platform and other coastal or offshore
dangerous areas, Such as port, ship, oil, petrochemical, oil depot,
and it’s designed and manufactured according to requirements of
EN60079-0: 2009, EN60079-1: 2007, EN60079-31: 2009, IEC60079-0:
2007, IEC60079-1: 2007, IEC60079 31: 2008. The Ex marking is :Ex d
ⅡB+H2 T5 Gb / Ex tD 21 T95℃
This explosion proof lamp is special designed to replace
traditional fluorescent tube.It has longer lifetime,don't need to
replace tube. It can not only save energy,but also save a lot of
maintenance costs.More economic and environmental .
Brief information:
1.product model:DL618
2.power:40w
3. Initial Luminous Flux: 5400 lumens
4.housing material:die-cast alluminium alloy with toughened glass
5.lifetime:>50000h
6.Ex mark: Ex d II B + H2 T5 Gb
7.light source:cree LED
8. warranty:5year
Technical parameter
| Items | Unit Value |
Light Source | LED | CREE XT-E |
| Luminous Flux | 5400 lumens |
| Color Temperature | 5700-6000K |
| Color Rendering Index | Ra>80 |
| power | 40 watt |
| Input Voltage | AC 110-240V |
| Housing Material | Die cast aluminum housing with tempered glass |
| Dimension | ø117X151 X910mm |
| Weight | 8 kg |
| Working Temperature | -20°C ~ +50°C |
| Beam angle | 160° |
| Corrosion protection Classification | WF2 |
| IP Classification | IP66 |
| EX Mark | Ex d ⅡB+H2 T5 Gb / Ex tD 21 T95℃ |
| Total harmonic current | <15% |
| Factor | >0.95 |
Please access the cable with power, pay attention to lamps to
safety ground , and operate the light in right way.
Dimension and Package (unit: mm):
1) DL618 dimension: 910*151*117(figure 1)
2) Package size: 1030*270*260
Application Area:
DL618 series LED Explosion Proof Floodlight is applicable for zone
I and zone II , or gas area,restricted area or heavy industrial
processing equipment area, drilling platform and other coastal or offshore dangerous areas,
Such as port, ship, oil, petrochemical, oil depot.

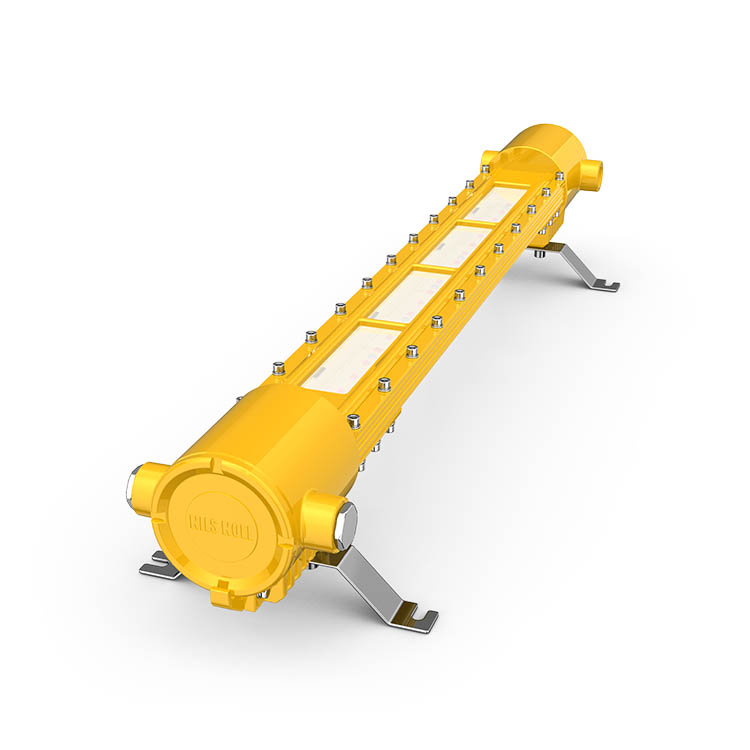

Product show:
